The main inductive position sensor providers are:

• Melexis
• Renesas
• Microchip
• TI
• Onsemi
• AMS

These companies typically offer two types of inductive position sensors:

1. High-speed ICs (usually for rotary applications with SIN/COS output)
2. Low-speed ICs (for linear or reduced range-of-motion applications with ANALOG/SENT/SPC/SPI/PWM outputs).

In this comparison, we will focus on high-speed IPS. The comparison parameters include:

• PCB design requirements for correct operation
• Programming
• Temperature range
• Accuracy
• Source voltage
• Maximum speed
• Operating frequency
• Block diagram

Products

• Melexis:
  • High-speed IC: MLX90510 (SIN/COS output)
  • Low-speed IC: MLX90513 (ANALOG/SENT/SPC/PWM outputs)
• Onsemi:
  • Low-speed IC: NCV77320 (ANALOG/SENT/SPI outputs)
• Renesas:
  • High-speed IC: IPS2550 (SIN/COS output)
  • Low-speed ICs: ZMID4200/5201/5202/5203 (SENT/PWM/ANALOG outputs)
• TI:
  • High-speed IC: LDC5072 (SIN/COS output)
• Microchip:
  • High-speed IC: LX34050 (SIN/COS output)
  • Low-speed ICS : LX3301A/LX3302A (SENT/PWM/ANALOG outputs)
• AMS:
  • High-speed IC: AS5715R (SIN/COS output)

PCB Design

• Three-phase concept:
  • Used by Melexis and Onsemi.
  • Pros: Better accuracy due to harmonics suppression with the third coil.
  • Cons: More complex design requiring expert knowledge.
• Two-phase concept:
  • Used by Renesas, TI, AMS, and Microchip.
  • Pros: Simpler design (one coil for SIN, the other for COS).
  • Cons: Less accurate.

Temperature Range

• -40° to 160°C: AMS, Melexis, Renesas, TI
• -40° to 150°C: Microchip, Onsemi

Source Voltage

• 5V and 3.3V: Renesas, TI, Onsemi
• 5V: Melexis, AMS, Microchip

Maximum Speed

• Melexis: 240,000 electrical rpm
• Onsemi: 10,800 electrical rpm
• Renesas: 600,000 electrical rpm
• TI: 480,000 electrical rpm
• Microchip: Data not available
• AMS: 480,000 electrical rpm

Operating Frequency

• 2-5 MHz: Melexis, Onsemi, Renesas
• 2.4-5 MHz: TI
• AMS and Microchip: Data not available

Accuracy

• Melexis: <0.36°
• Renesas: <0.36°
• AMS: <0.36°
• TI: <1°
• Onsemi: Data not given
• Microchip: Data not given

Block diagram

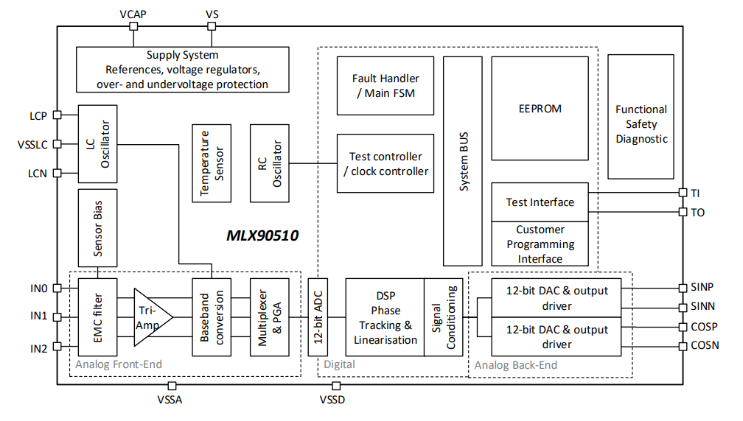

Melexis :

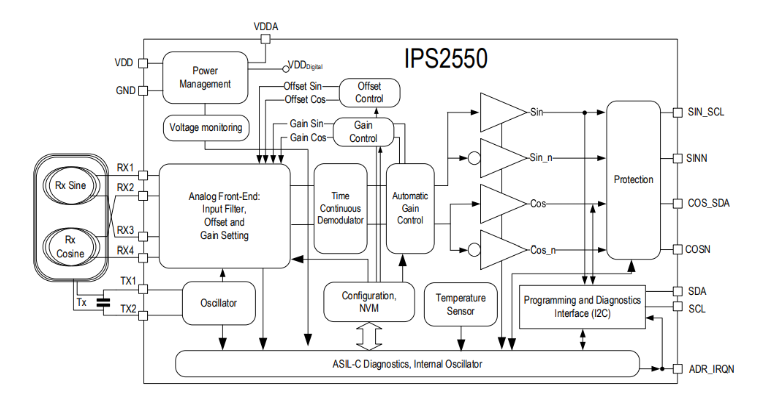

Renesas :

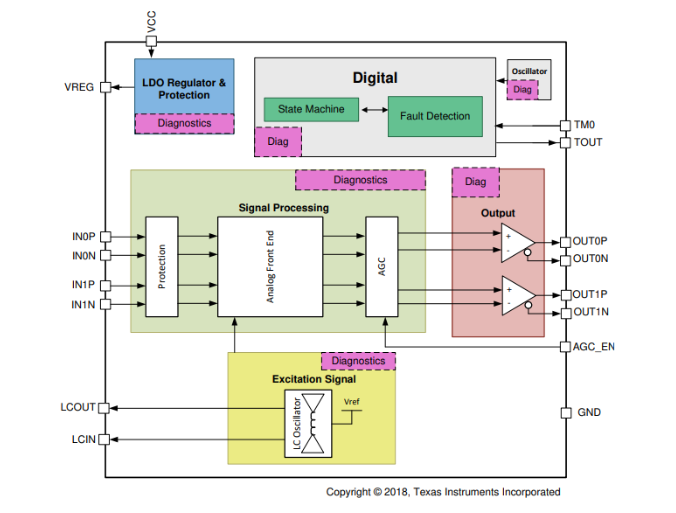

TI :

Onsemi : Doesn’t have a SIN/COS output

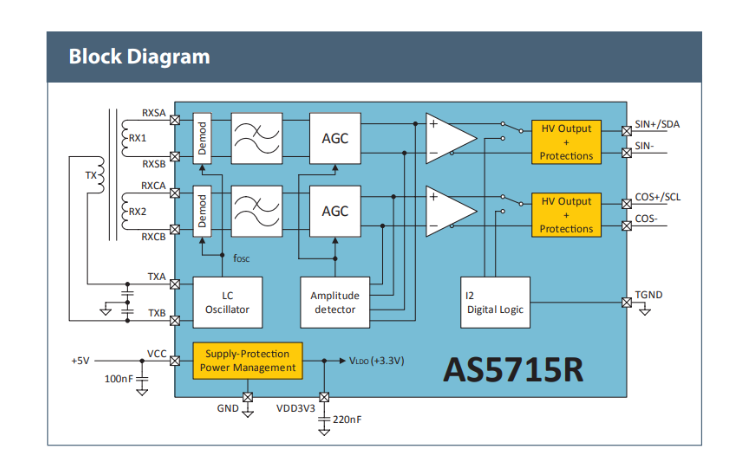

AMS :

Microchip : Datasheet not available

All chips include input filters, demodulation, AGC gain, and op-amplifier blocks. Melexis stands out by converting analog signals to digital with an ADC, enabling digital programming.

Propagation Delay

• Melexis: 0 ± 12 ns (compensated)
• Renesas: 4 μs
• TI: 4.6 μs
• AMS: Data not available
• Microchip: Data not available

Programming

• I2C programming: Onsemi, AMS, Renesas (requires a special board connected to the IC, with companies providing LabVIEW code for programming)
• PTC-04: Melexis (requires a special tool for programming, which simplifies the process)
