Your partner for precise, contactless position sensing, from concept to integration.

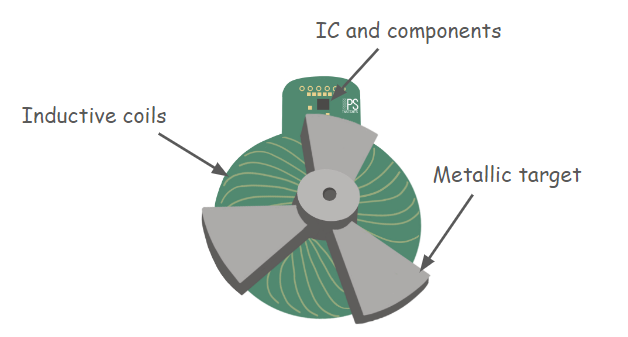

Inductive position sensors deliver robust, contactless and highly accurate measurement for demanding motion-control applications. We cover the full chain: coil design, signal simulation, IC selection, ISO 26262-compliant PCB design, integration and testing.
For unidirectional linear-motion applications.

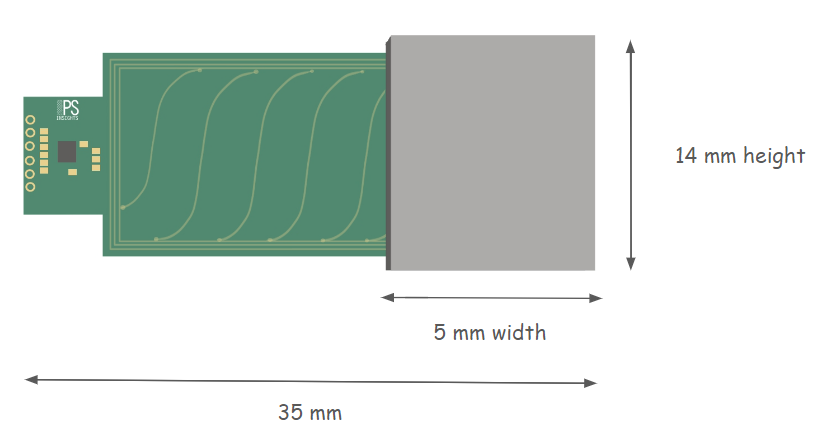

View detailsContactless linear position measurement along a straight stroke. Example demonstrator: 35 mm board, 5 x 14 mm target, analog output. Ideal for actuators, valves and linear stages.
For continuous rotary applications.

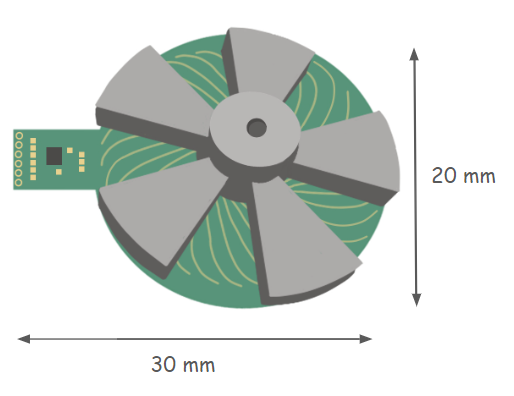

View detailsContactless absolute angle measurement over a full rotation. Example: 30 mm diameter with a multi-pole target for high resolution. Used in motors, throttle and steering applications.
For finite angular-motion applications.

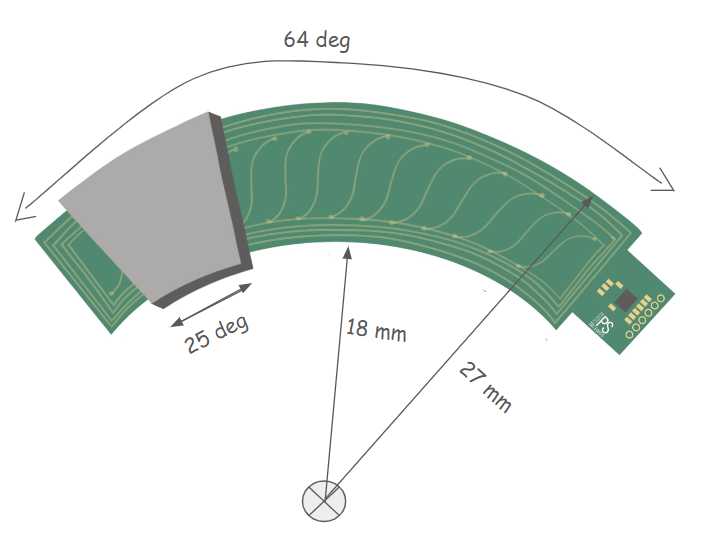

View detailsContactless angular measurement over a limited arc. Example: 64 degree range at 27 mm radius. For pedals, levers and limited-travel mechanisms.
Coil design and electromagnetic simulation
Sensor IC selection and configuration
ISO 26262 automotive-grade PCB design
Proof-of-concept development
Integration into your system
Testing and performance optimisation

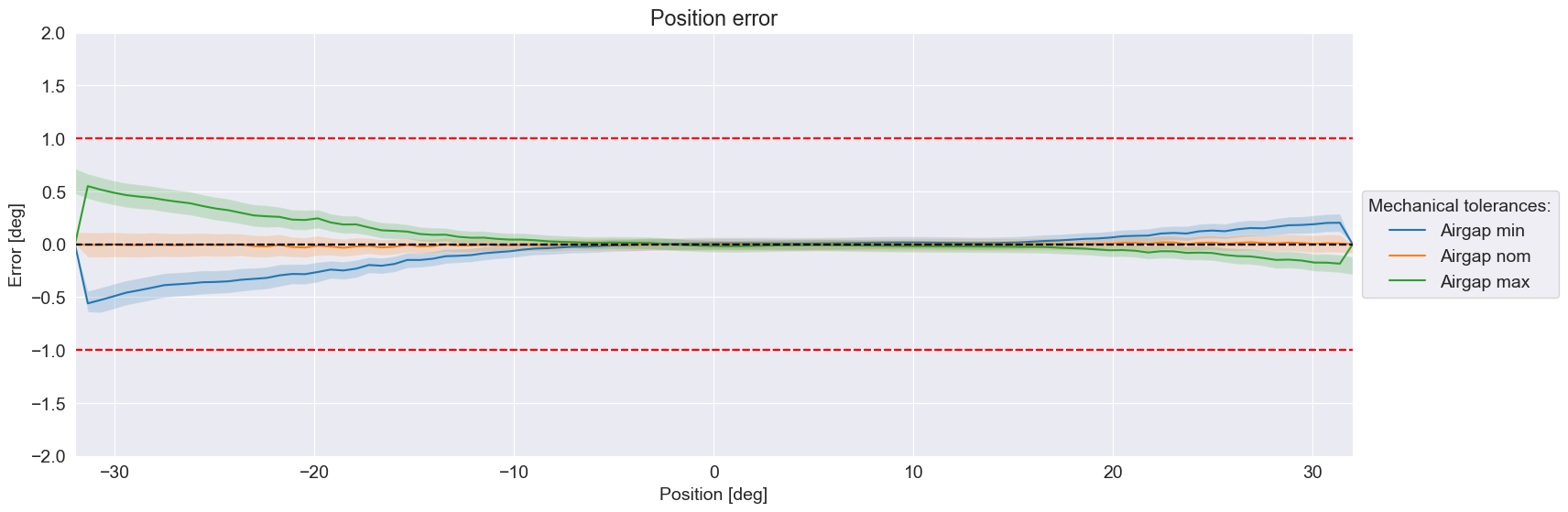

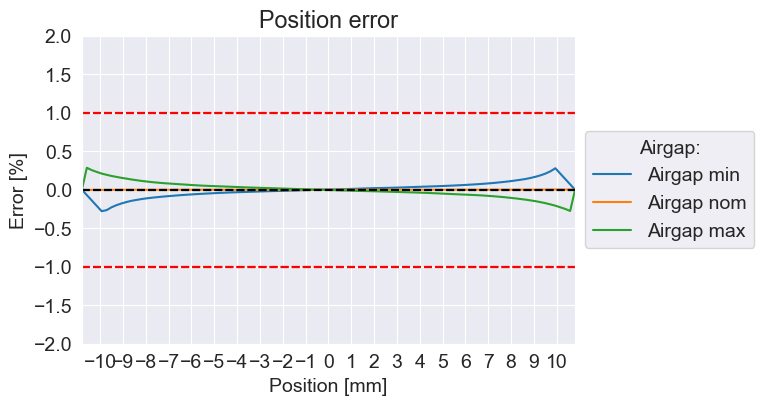

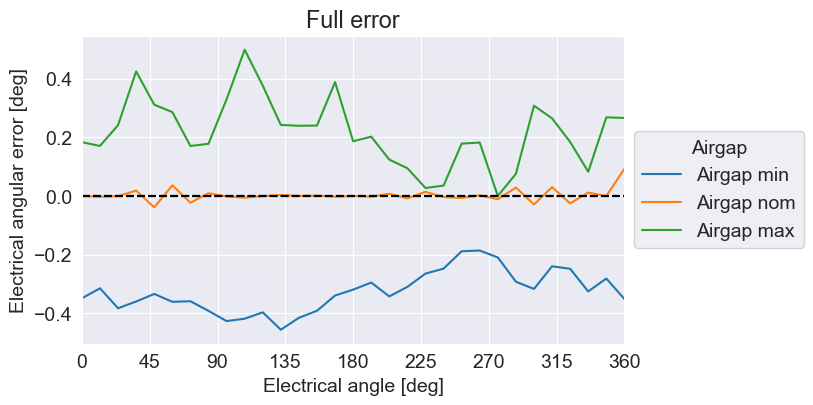

Measured performance across linear, rotary and arc designs, built to automotive and aerospace requirements (ISO 26262, DO-160).
A-to-Z assistance, from concept to implementation.
Deep, hands-on technology insight from years in the field.
Full support on component and IC selection.
